AEOLUS SERIES DC INVERTER WALL
MONOSPLIT TYPE HEATING & COOLING
AIR CONDITIONING UNIT

General Functions

Quiet Comfort. Smart Efficiency

The Aeolus Series Monosplit is a range of wall-mounted DC inverter air conditioners and heat pumps for residential use, available in 9,000, 12,000 and 18,000 BTU.

Key Features

  • High efficiency: Cooling SEER of up to 6.56 (A++) and an A+++ heating rating for warmer climates across the range, with R32 refrigerant
  • Quiet operation: Indoor sound pressure level from 20 dB(A), depending on model
  • Heating and cooling: One reversible system for all seasons

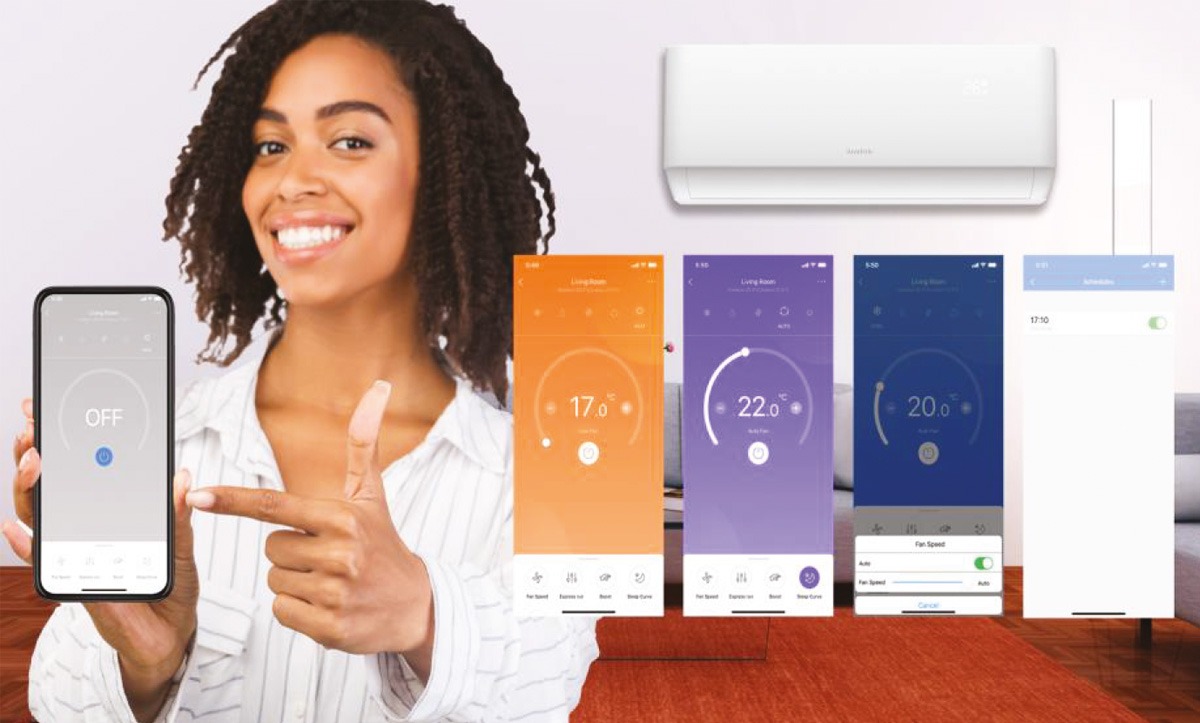

  • Smart control: Remote, mobile app and compatibility with all major voice assistants
  • Fast comfort: Turbo mode and programmable timer
  • Healthier air: High-density filters and dehumidification mode
  • Low maintenance: Self-cleaning function and anticorrosive heat exchanger

A corrosion-resistant heat exchanger and a rotary compressor are backed by a 3-year unit warranty and a 6-year compressor warranty. Installation is carried out by our network of professional installers, so it's set up properly from day one.


Detailed Specifications

Full technical data for each Aeolus Series Monosplit models. Select a capacity to view its specification table, including dimensions, electrical data, refrigerant charge and installation limits.

  • Type: Wall-mounted split, DC inverter, 50 Hz
  • Functions: Cooling, heating, dehumidification, timer, turbo, self-clean, fresh air
  • Power supply: 220-240 V / 50 Hz / single phase
  • Control: Remote controller, smart app, voice assistant compatible
  • Filtration: High-density filters
  • Heat exchanger: Anticorrosive coating
  • Warranty: 3 years (unit) / 6 years (compressor)
  • Rated capacity: 9,000 BTU
  • Efficiency (SEER / SCOP): 6.34 cooling / 4.15 heating (average climate) / 5.14 heating (warmer climate)
  • Energy class: A++ cooling / A+ heating (average) / A+++ heating (warmer)
  • Power input: 800 W cooling (150-1,300 W) / 750 W heating (150-1,250 W)
  • Current input: 3.6 A cooling (0.8-5.8 A) / 3.4 A heating (0.8-5.6 A)
  • Compressor: Rotary
  • Dimensions (L×W×H): Indoor 680×252×206 mm / outdoor 660×235×473 mm
  • Net weight: Indoor 7 kg / outdoor 18 kg
  • Sound pressure level: Indoor 20-38 dB(A) / outdoor 51 dB(A)
  • Sound power level: Indoor 30-48 dB(A) / outdoor 61 dB(A)
  • Refrigerant: R32, 390 g
  • Max. pipe length / height difference: 15 m / 5 m
  • Operating range, outdoor: Cooling 18 to 43 °C / heating -20 to 24 °C
  • Operating range, indoor: Cooling 17 to 32 °C / heating 0 to 30 °C
  • Type: Wall-mounted split, DC inverter, 50 Hz
  • Functions: Cooling, heating, dehumidification, timer, turbo, self-clean, fresh air
  • Power supply: 220-240 V / 50 Hz / single phase
  • Control: Remote controller, smart app, voice assistant compatible
  • Filtration: High-density filters
  • Heat exchanger: Anticorrosive coating
  • Warranty: 3 years (unit) / 6 years (compressor)
  • Rated capacity: 12,000 BTU
  • Efficiency (SEER / SCOP): 6.46 cooling / 4.15 heating (average climate) / 5.16 heating (warmer climate)
  • Energy class: A++ cooling / A+ heating (average) / A+++ heating (warmer)
  • Power input: 1,150 W cooling (150-1,400 W) / 1,020 W heating (150-1,270 W)
  • Current input: 5.2 A cooling (0.8-6.9 A) / 4.6 A heating (0.8-6.2 A)
  • Compressor: Rotary
  • Dimensions (L×W×H): Indoor 780×276×202 mm / outdoor 660×235×473 mm
  • Net weight: Indoor 8 kg / outdoor 20 kg
  • Sound pressure level: Indoor 22-40 dB(A) / outdoor 51 dB(A)
  • Sound power level: Indoor 32-50 dB(A) / outdoor 61 dB(A)
  • Refrigerant: R32, 490 g
  • Max. pipe length / height difference: 15 m / 5 m
  • Operating range, outdoor: Cooling 18 to 43 °C / heating -20 to 24 °C
  • Operating range, indoor: Cooling 17 to 32 °C / heating 0 to 30 °C
  • Type: Wall-mounted split, DC inverter, 50 Hz
  • Functions: Cooling, heating, dehumidification, timer, turbo, self-clean, fresh air
  • Power supply: 220-240 V / 50 Hz / single phase
  • Control: Remote controller, smart app, voice assistant compatible
  • Filtration: High-density filters
  • Heat exchanger: Anticorrosive coating
  • Warranty: 3 years (unit) / 6 years (compressor)
  • Rated capacity: 18,000 BTU
  • Efficiency (SEER / SCOP): 6.56 cooling / 4.27 heating (average climate) / 5.15 heating (warmer climate)
  • Energy class: A++ cooling / A+ heating (average) / A+++ heating (warmer)
  • Power input: 1,680 W cooling (170-1,850 W) / 1,540 W heating (170-1,900 W)
  • Current input: 7.9 A cooling (1.0-8.3 A) / 7.3 A heating (1.0-8.5 A)
  • Compressor: Rotary
  • Dimensions (L×W×H): Indoor 850×276×202 mm / outdoor 898×345×546 mm
  • Net weight: Indoor 11 kg / outdoor 28 kg
  • Sound pressure level: Indoor 26-40 dB(A) / outdoor 54 dB(A)
  • Sound power level: Indoor 36-50 dB(A) / outdoor 64 dB(A)
  • Refrigerant: R32, 1,010 g
  • Max. pipe length / height difference: 15 m / 5 m
  • Operating range, outdoor: Cooling 18 to 43 °C / heating -20 to 24 °C
  • Operating range, indoor: Cooling 17 to 32 °C / heating 0 to 30 °C
